Low Viscosity Simulation

swirl=.07, viscosity=.00005.


This page shows the low viscosity simulation in the comparison of 4 simulations. Frequently two or more vortices. Two may be intense.

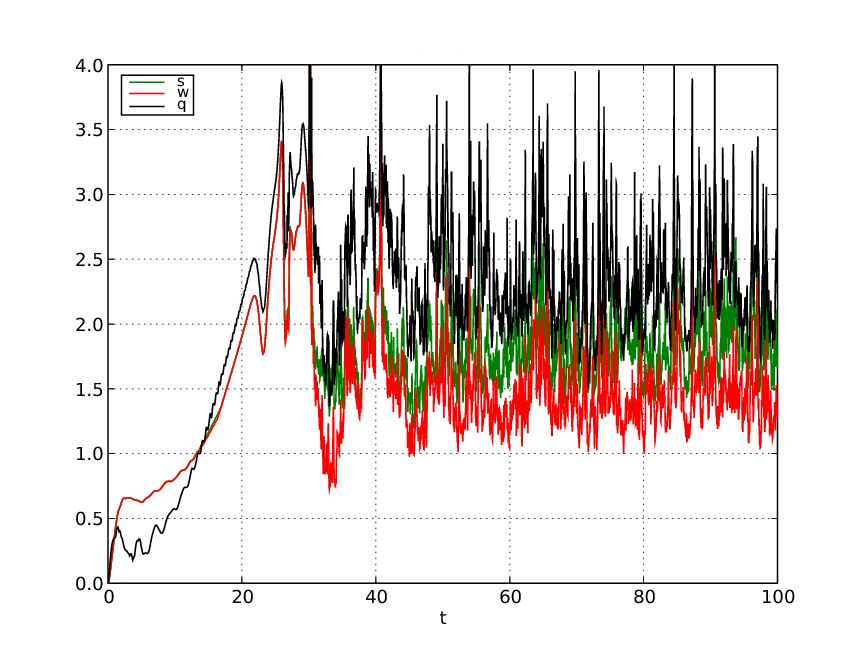

Maxima in the lower half of the domain. w is vertical velocity, s is speed, q is of sqrt(-2p'/ρ).

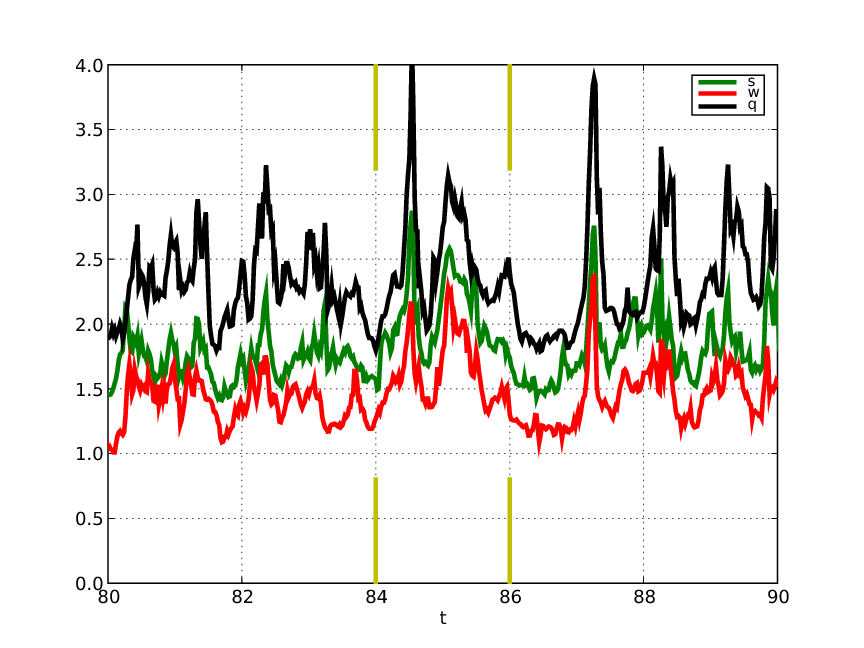

Same as above, but showing only 80<t<90. An animation is presented below for 84<t<86, the time spans indicated with the yellow bars.
